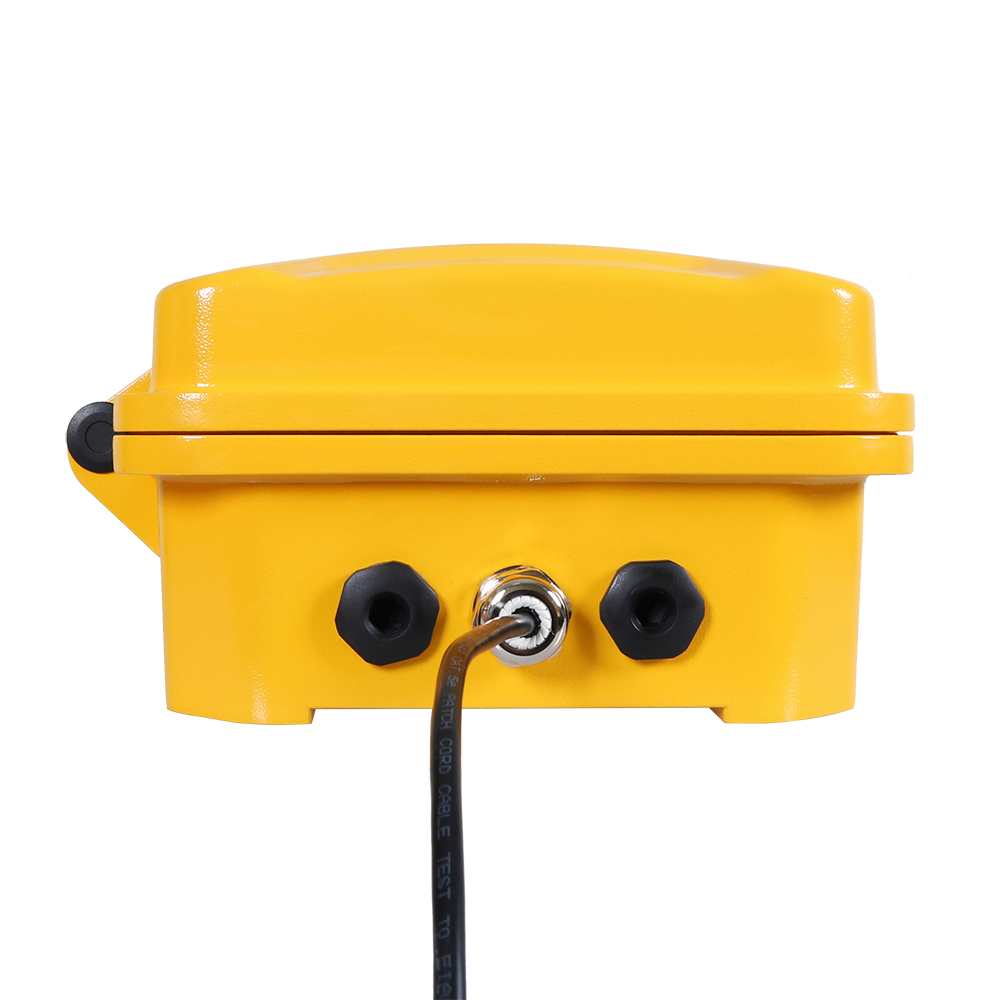

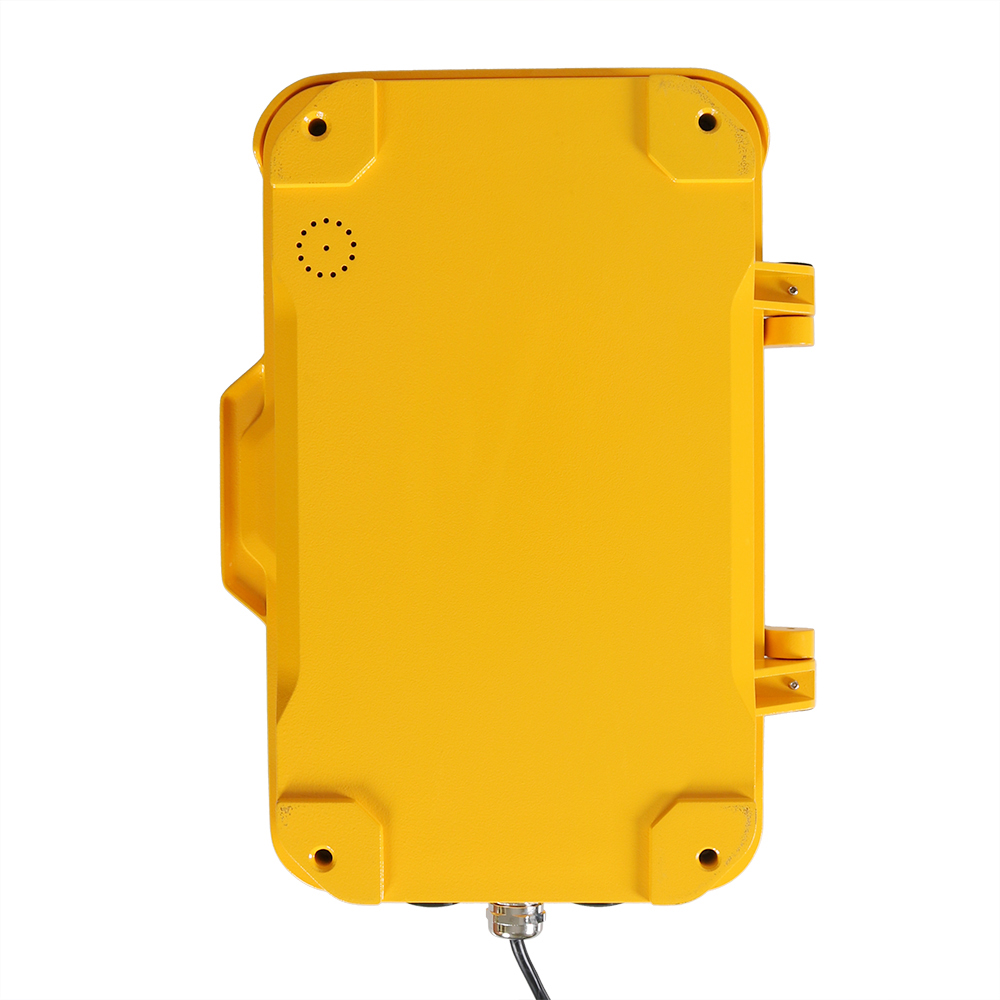

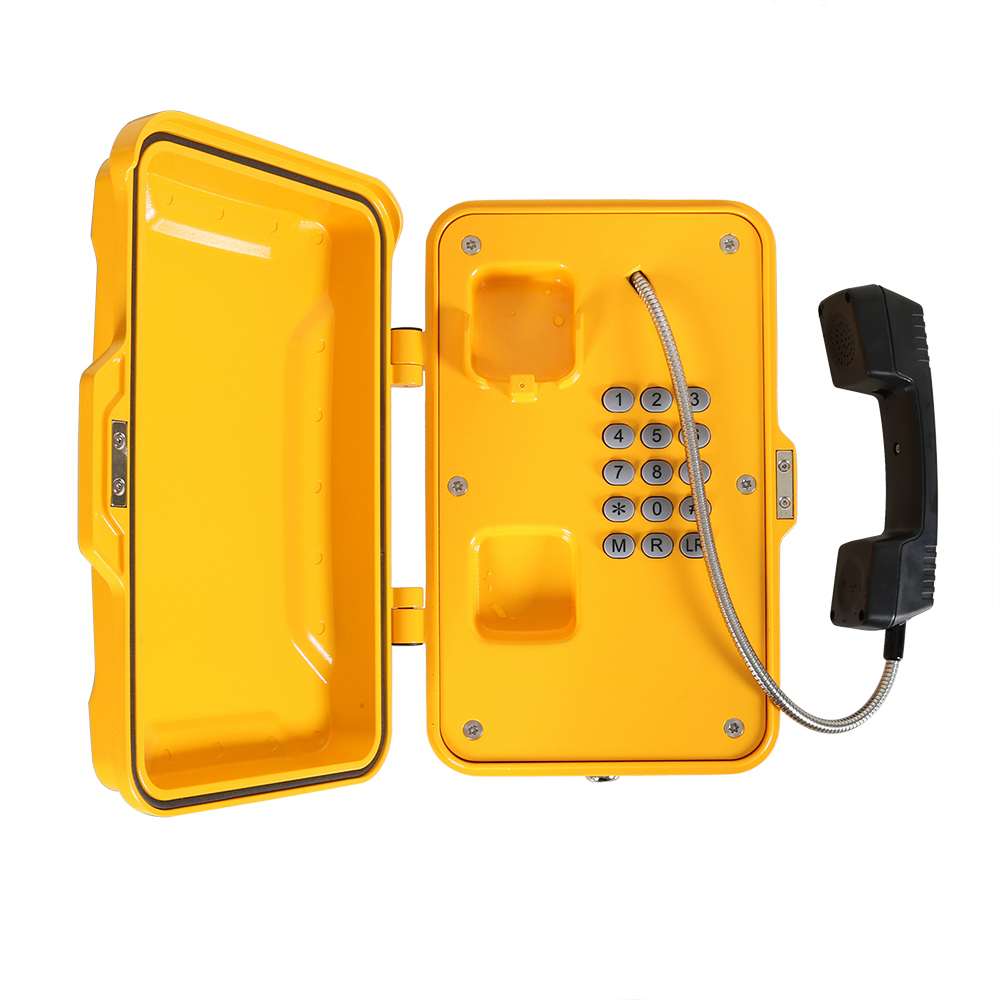

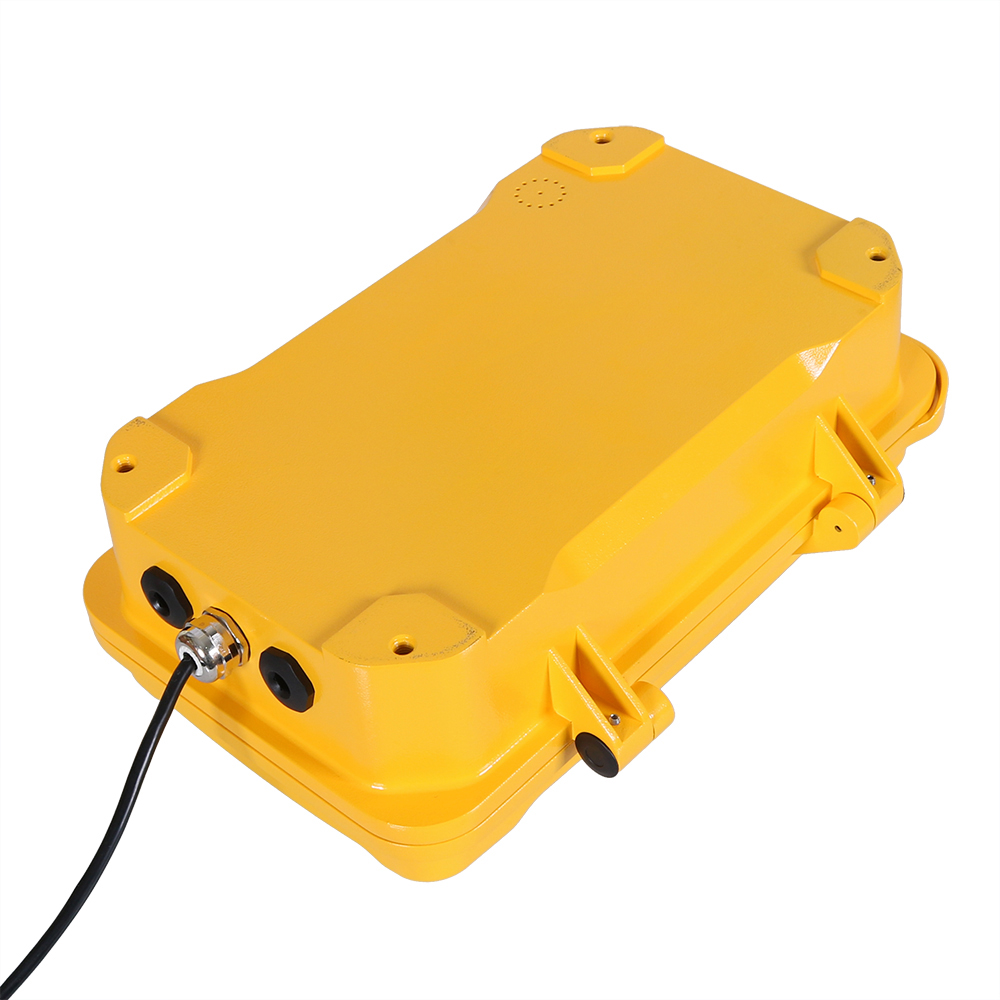

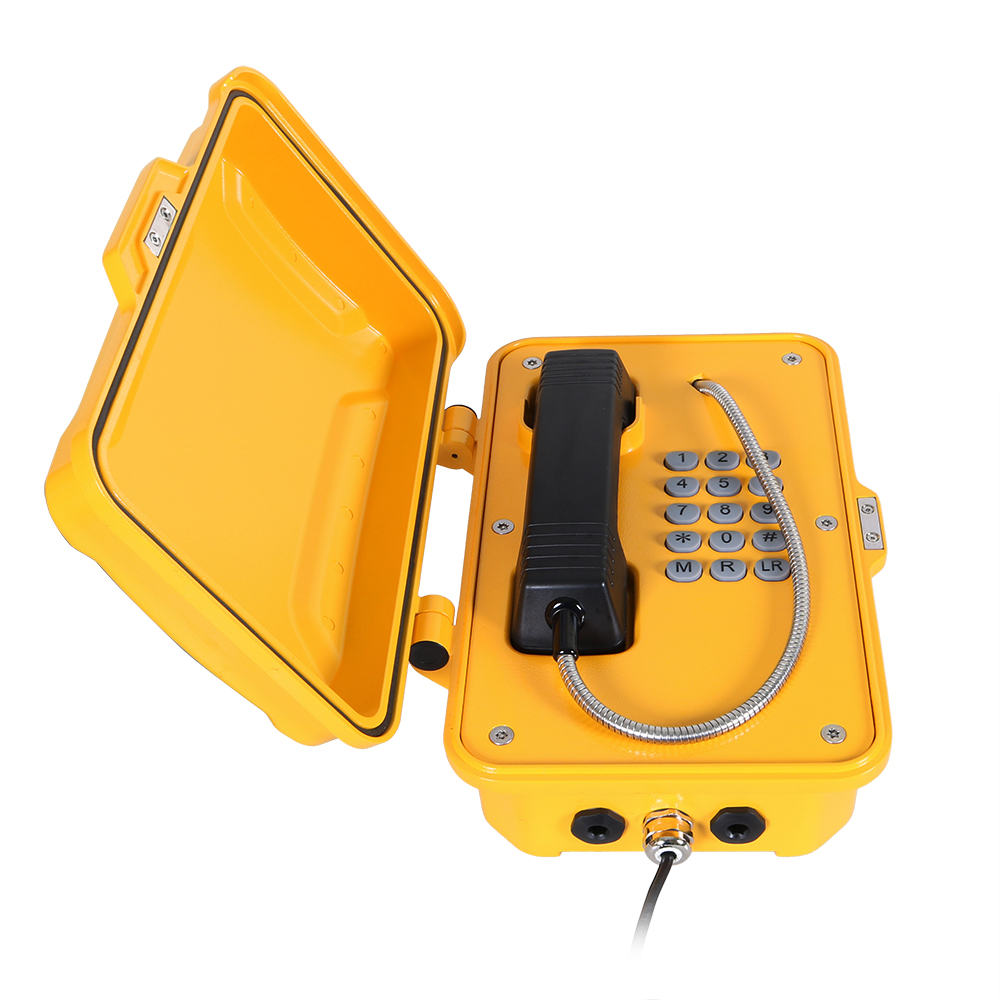

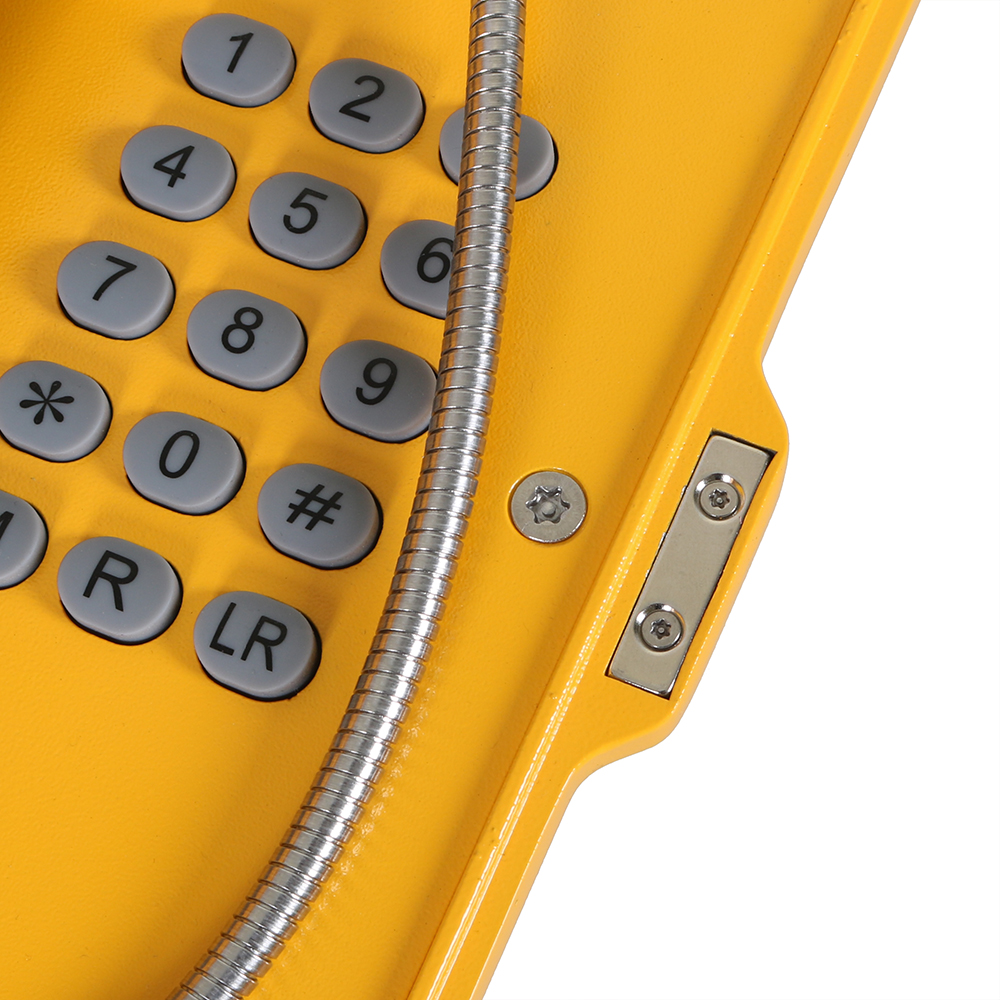

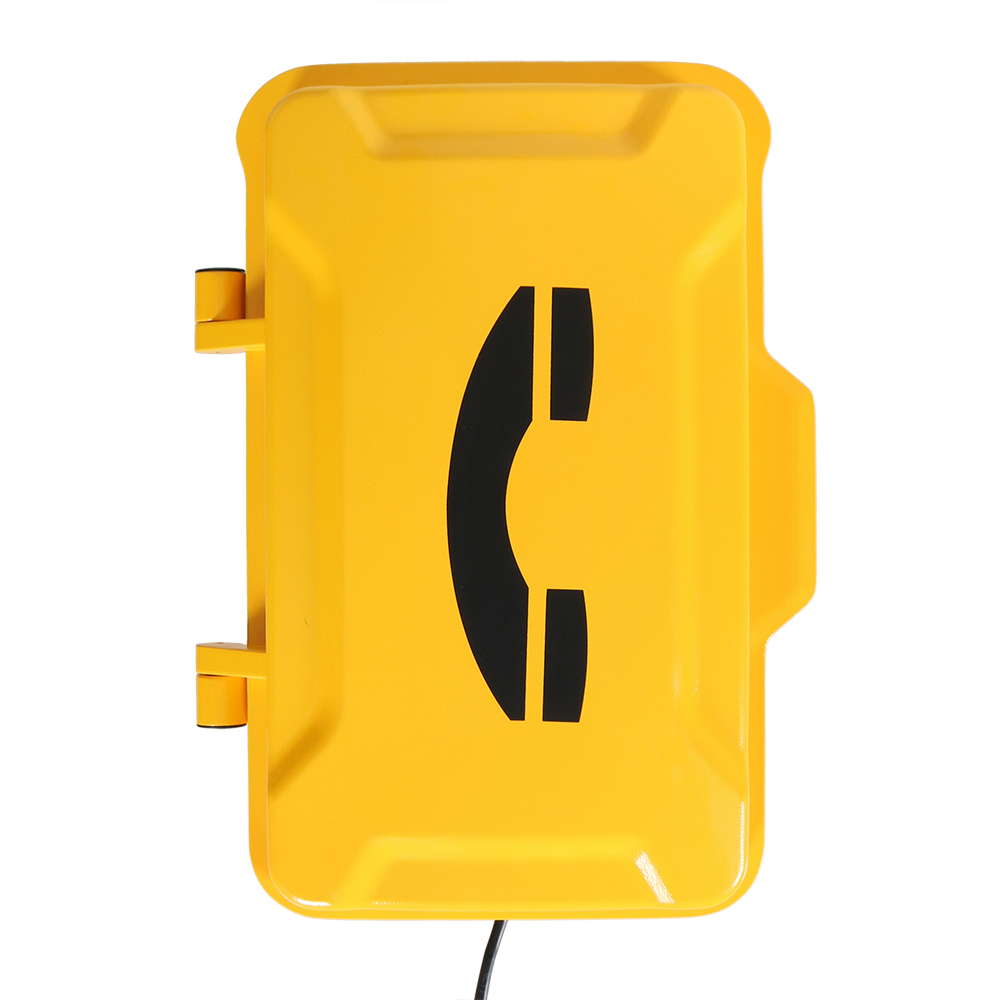

JR101-FK Waterproof Industrial Telephone has great stability and strong anti-interference ability, the phone supports full duplex communication and two-way communication. The telephone is designed according to the stability requirements of minus 40 degrees to 75 degrees above zero, and its technical index is at the international leading level. The waterproofing performance of the phone is up to IP67 and is suitable for wet, extreme temperature, and bad weather environment use.

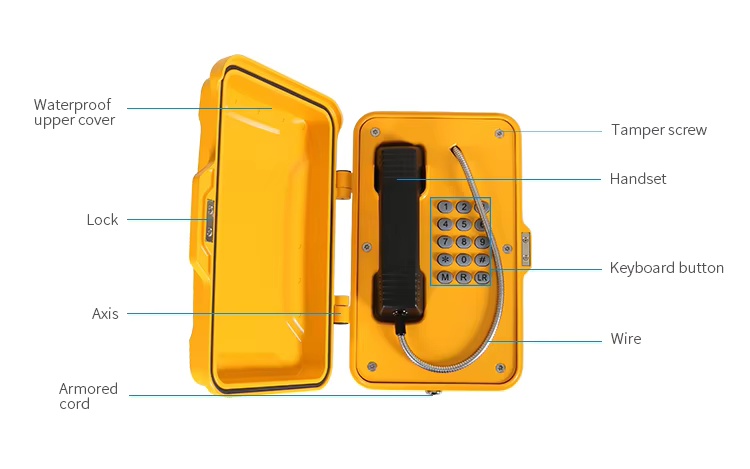

It was developed for public and industrial areas requiring a virtually indestructible telephone. The housing is made of die-cast aluminum alloy with a weatherproof enclosure and an exterior polyurethane coating, ensuring resistance to humidity, dust, vibration, shock, extreme temperatures, saltwater exposure, and vandalism.
Options analog, SIP/VoIP, 4G version waterproof telephone adaptable outdoor public areas, highways, underground tunnels and mining sites, offshore wind farms, production floors, chemical processing plants, power stations, and heavy lifting machinery such as quayside container cranes, RTGs, and bulk-material ship loaders.
Die-cast aluminum alloy body with IP66/IP67 rating, IK10 impact resistance, and corrosion-resistant hardware, withstanding -40°C~75°C, dust, moisture and mining harsh conditions.
Advanced noise reduction filters out mining ambient noise such as mechanical and equipment sounds, ensuring clear on-site and dispatch communication.
Fulfills underground and on-site emergency communication and dispatching requirements across diverse mining operation scenarios.

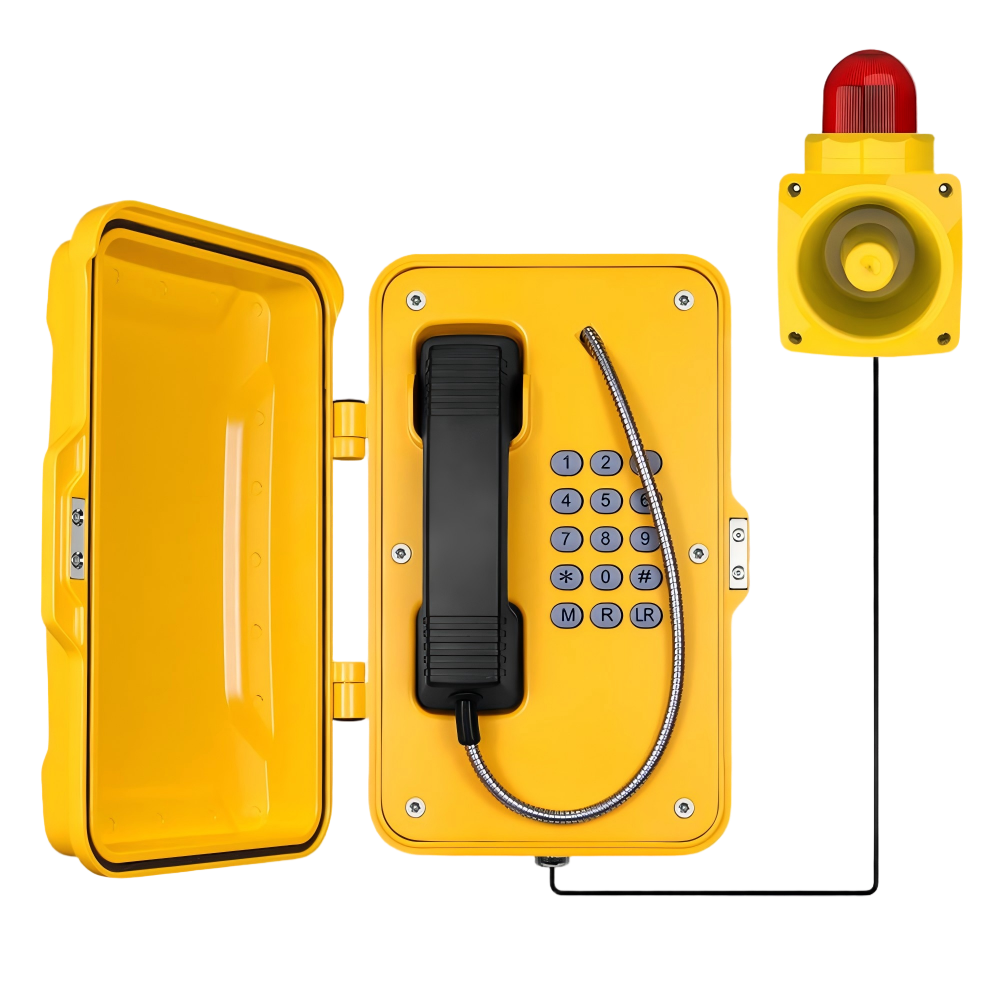

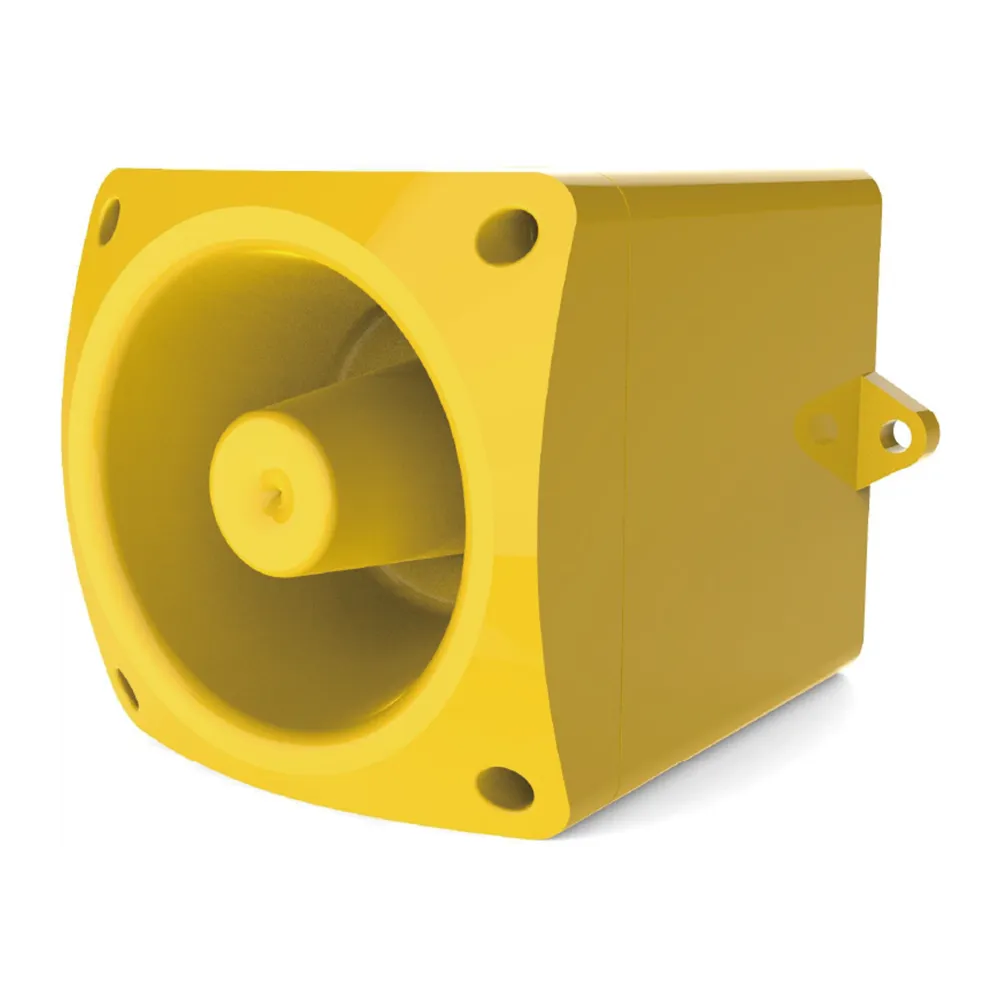

Supports integration with external audible and visual alarm beacons for clear call alerts in noisy mining environments.
| Analog Specification | |
| Power supply | Drawn from telephone line |
| Operating voltage | 24 VDC to 65 VDC |
| Operating current | 20 mA DC to 100 mA DC |
| Ringer operating voltage | 48 VAC to 90 VAC (calling frequency 21 to 54 Hz) |
| Ringing volume | 80 dB (A) @ 1 meter |
| Dialing method | PD or DTMF mode can be set via the menu. DTMF mode in accordance with ITU-T recommendation Q.23 |
| Lightning / Transients | Protection to ITU-T K.21 enhanced levels |
| Programming | It can be programmed remotely via DTMF tones or the keypad |
| Technical Specifications | |
| Compatible with all the standard PABX systems | |
| Remote programming allows you to manage your network from a central location | |
| Programmable auto hang-up timer | |
| Supports automatic dialing with delay after picking up the phone | |
| Supports scheduled dialing to the central control phone to detect whether the phone is working properly | |
| Supports MIC mute function | |
| Supports call transfer | |
| Supports the telephone line to power external light fixed on the top (no external power supply needed) | |
| Supports one relay to remotely control external devices | |
| Can be adapted according to the model of the Analog PABX to support the sequential calling function | |
| Operating temperature -40˚C to 65˚C / Storage temperature -40°C to 75°C | |
| M.T.B.F. exceeds 50,000 hours under normal operating conditions | |

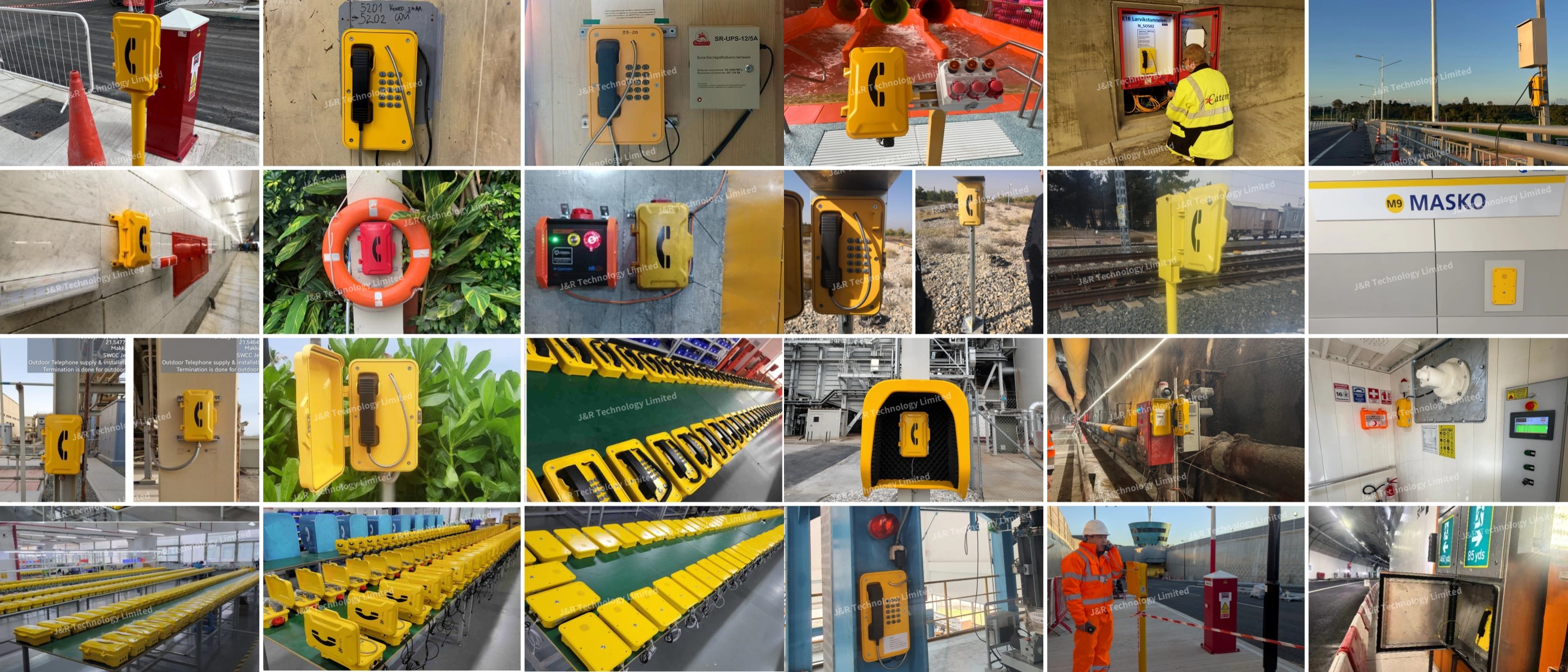

Port
Ship
Highway / Tunnel
Railway
Generating station
Mining industry
Industrial park
Heavy industry

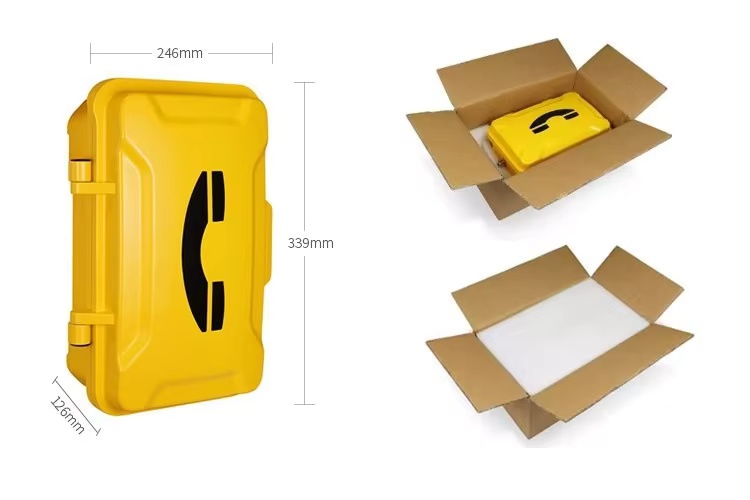

| Package | |

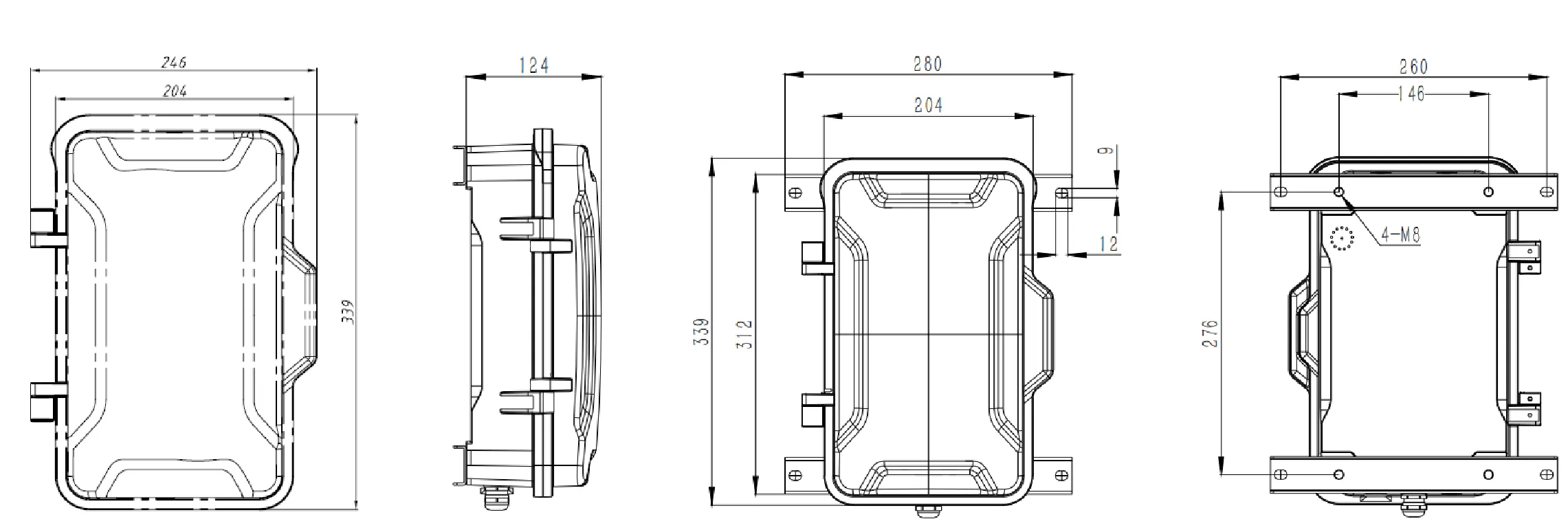

| Unit size | 246*339*124 (mm) |
| Shipping dimensions | 200*300*440 (mm) |
| Packaging materials | Foam padding, carton |
| Weight | Gross weight: 7 kg / Net weight: 6 kg |
