  • English
  • Products
  • Weatherproof Telephones
  • JR100-4G
  1. Waterproof Telephones JR105-FK-4G
  2. Waterproof Telephones JR105-FK-4G
  3. Waterproof Telephones JR105-FK-4G
  4. Waterproof Telephones JR105-FK-4G
  5. Waterproof Telephones JR105-FK-4G
  6. Waterproof Telephones JR105-FK-4G

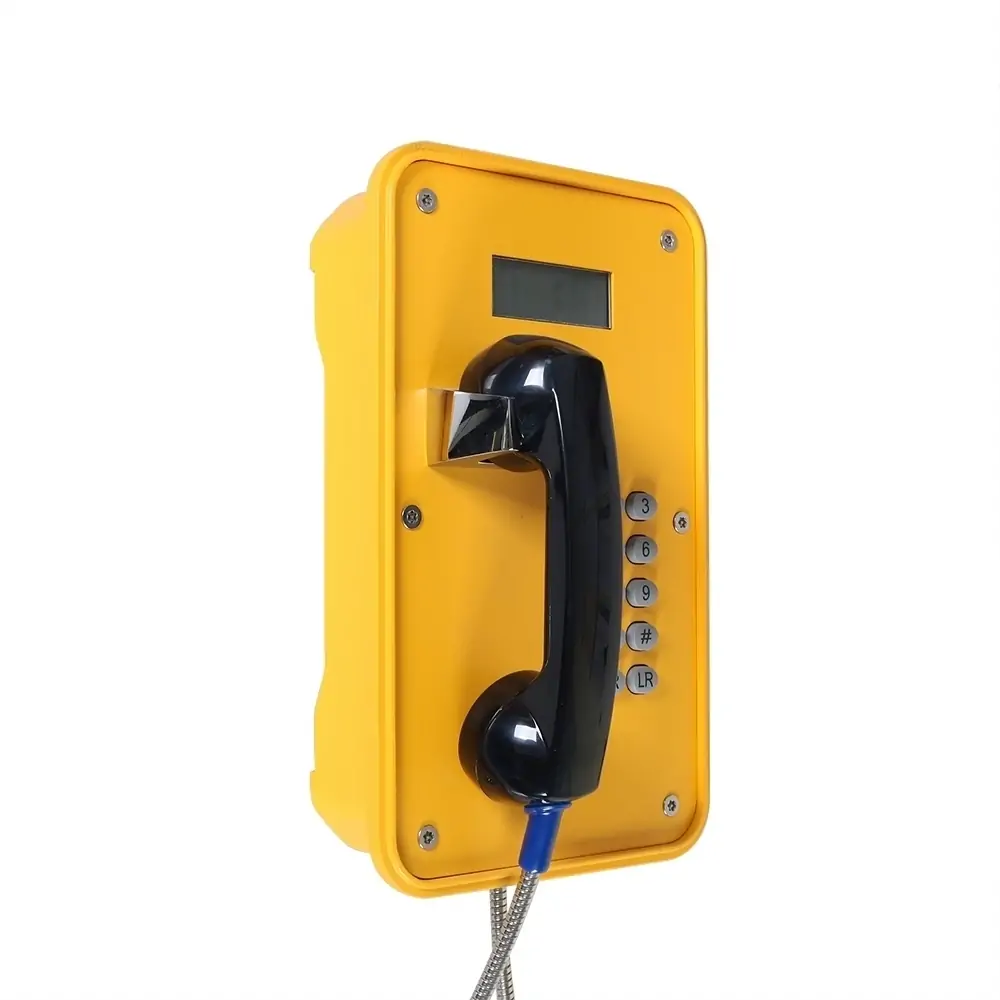

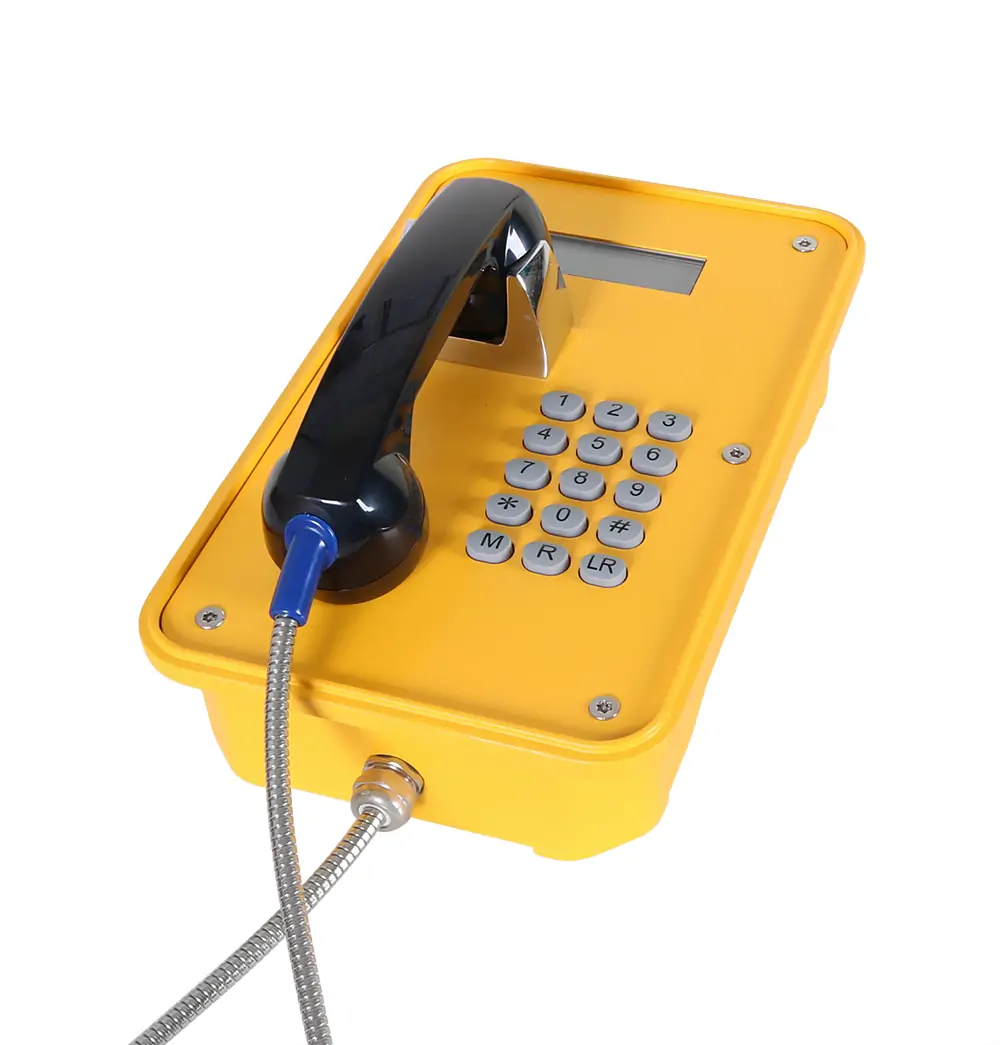

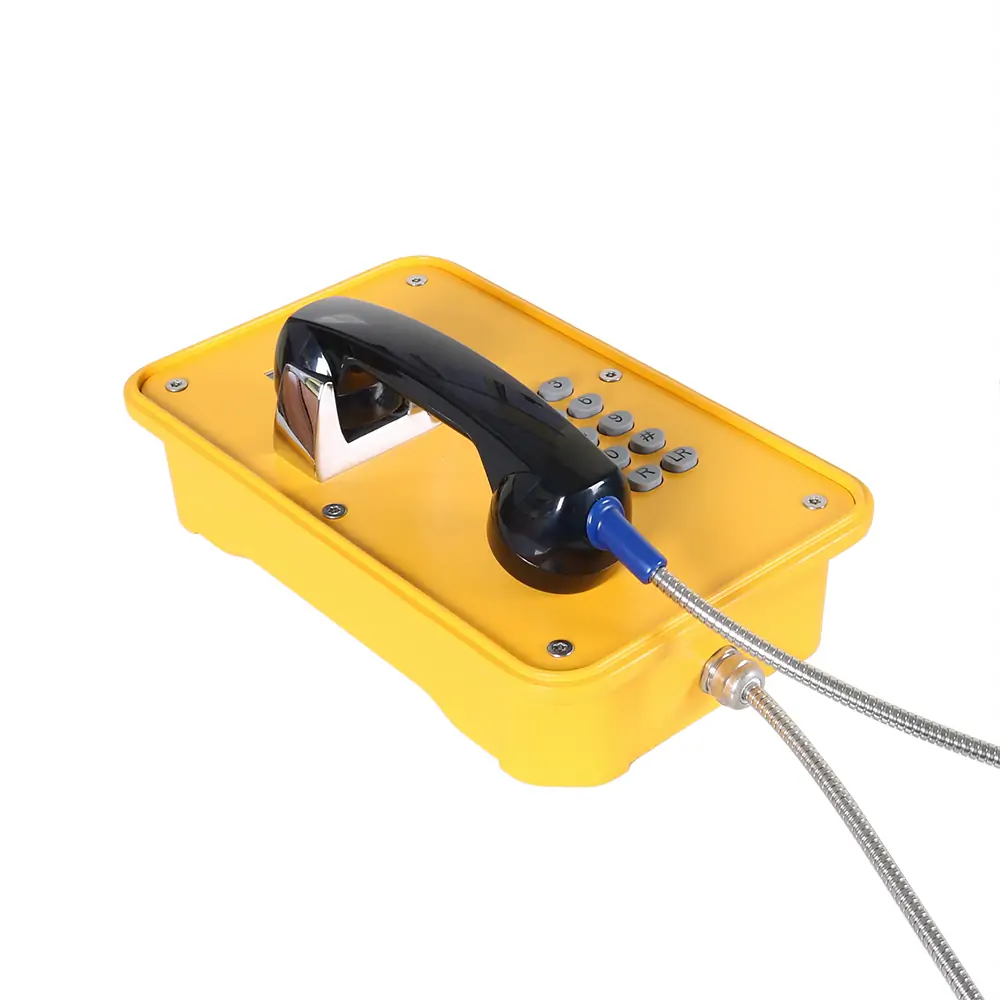

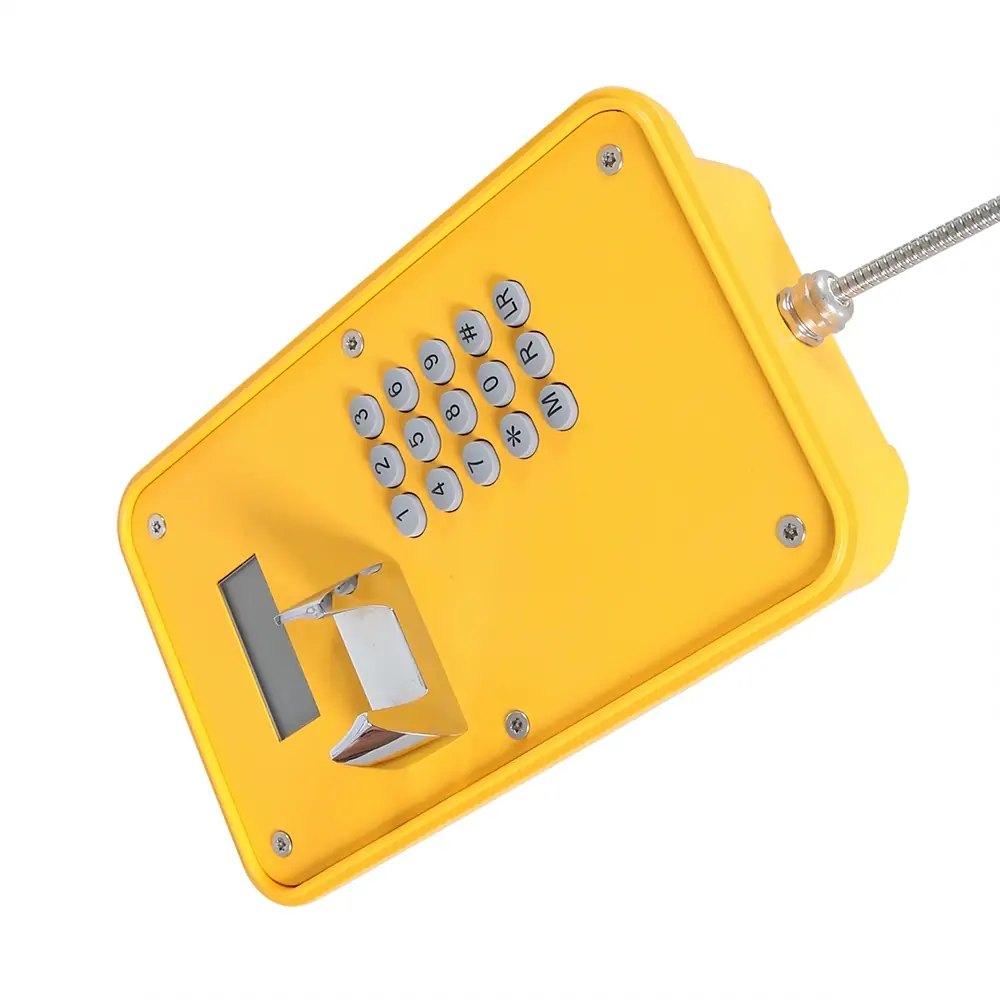

Waterproof Telephones JR105-FK-4G
Waterproof Telephones JR105-FK-4G
Waterproof Telephones JR105-FK-4G
Waterproof Telephones JR105-FK-4G
Waterproof Telephones JR105-FK-4G

Waterproof Telephones JR105-FK-4G

  • Aluminum alloy die-casting body
  • Protection level IP66/IP67
  • Advanced noise reduction technology for HD calls
  • Corrosion-resistant hardware
  • CE, FCC, RoHS, IK10, IP67, ISO9001 standards
获取报价 下载规格书
返回首页
主要特征
解决方案
技术参数
应用场景
联系我们

主要特征

It was designed for public and industrial areas requiring a virtually indestructible telephone. The housing is made of die-cast aluminum alloy, with a weatherproof enclosure and an exterior polyurethane finish. It is designed to withstand high levels of humidity, dust, vibration, shock, extreme temperatures, (salt)water, abuse or attempted vandalism.

Typical applications include Outdoor Environments, Public Highways, Underground Tunnels / Mining, Offshore Wind Farms, Production Floors, Chemical Processing Sites, Power Stations or inside large Lifting Machinery such as Quayside Container Cranes, Rubber-Tyred Gantry Cranes (RTGs) and bulk-material Ship Loaders.


  • 4G wireless communication with remote configuration
  • With LCD display 128 x 64 pixels
  • Full rubber keypad; 'M', 'R', and 'LR' can be set as speed dial buttons (optional)
  • Handset with noise-cancelling microphone and 83 cm armored cord (optional heavy duty curly cord)
  • The handset supports hearing aid aid compatibility (HAC)
  • Magnetic reed hook-switch
  • Without door cover, supports wall mounting with mounting bar
  • Wiring access, 3xM20 cable gland entry points

解决方案

Insert the SIM card into the 4G phone and connect to the operator's network to make calls

JR105-FK-4G APPLICATIONS

产品视频

技术参数

4G Specifications
Power supply 12V DC
Adapter input 7.4 V-12V DC
Power consumption Idle 0.3W / Working 1.5W
Communication mode 4G
Working frequency Depends on modules
Ringing tone 90 dB (A) @ 1 meter
Configuration method Remote configuration via SMS, allows management from a central location
Configuration Remote monitoring / Auto-dial numbers
Time out Enforces a fixed call maximum time limit of 6-8 minutes from off-hook, configurably
Diagnostic function Low battery voltage, weak signal, speaker volume, microphone volume can be reported via message
Antenna Quad-band SMA male, externally mounted with 2 m cable
Environment temperature Operating temperature -40˚C to 65˚C; Storage temperature -40°C to 75°C
M.T.B.F. Exceeds 50,000 hours under normal operating conditions
4G Module EC25
Module EC25-E EC25-EU / EUX EC25-J EC25-V
Region EMEA/Korea/Thailand/India EMEA/Thailand Japanese America Verizon
Frequency
LTE-FDD B1/B3/B5/B7/B8/B20 B1/B3/B7/B8/B20/B28A B1/B3/B8/B18/B19/B26 B4/B13
LTE-TDD B38/B40/B41 B38/B40/B41 B41 /
WCDMA B38/B40/B41 B1/B8 B1/B6/B8/B19 /
GSM/EDGE B3/B8 B3/B8 / /
GNSS GPS/GLONASS/BeiDou (Compass)/
Galileo/QZSS (option)
GPS/GLONASS/BeiDou (Compass)/
Galileo/QZSS (option)
GPS/GLONASS/BeiDou (Compass)/
Galileo/QZSS (option)
GPS/GLONASS/BeiDou (Compass)/
Galileo/QZSS (option)
Module EC25-A EC25-AF / AFX / AFXD (Data-only) EC25-AUX EC25-MX
Region North America North America Latin America/Australia/New Zealand Mexico
Frequency
LTE-FDD B2/B4/B12 B2/B4/B5/B12/B13/B14/B66/B71 B1/ B2/B3/B4/B5/B7/B8/B28 B2/B4/B5/B7/B28/B66
LTE-TDD / / B40 /
WCDMA B2/B4/B5 B2/B4/B5 B1/B2/B4/B5/B8 B2/B4/B5
GSM/EDGE / / B2/B3/B5/B8 /
GNSS GPS/GLONASS/BeiDou (Compass)/
Galileo/QZSS (option)
GPS/GLONASS/BeiDou (Compass)/
Galileo/QZSS (option)
GPS/GLONASS/BeiDou (Compass)/
Galileo/QZSS (option)
/

应用场景

Port

Port

Ship

Ship

iHghway / Tunnel

iHghway / Tunnel

Railway

Railway

Generating station

Generating station

Mining industry

Mining industry

Industrial park

Industrial park

Heavy industry

Heavy industry

可选配件

Acoustic Hood JR-TH-01 Acoustic Hood JR-TH-01

Acoustic Hood JR-TH-01

尺寸包装

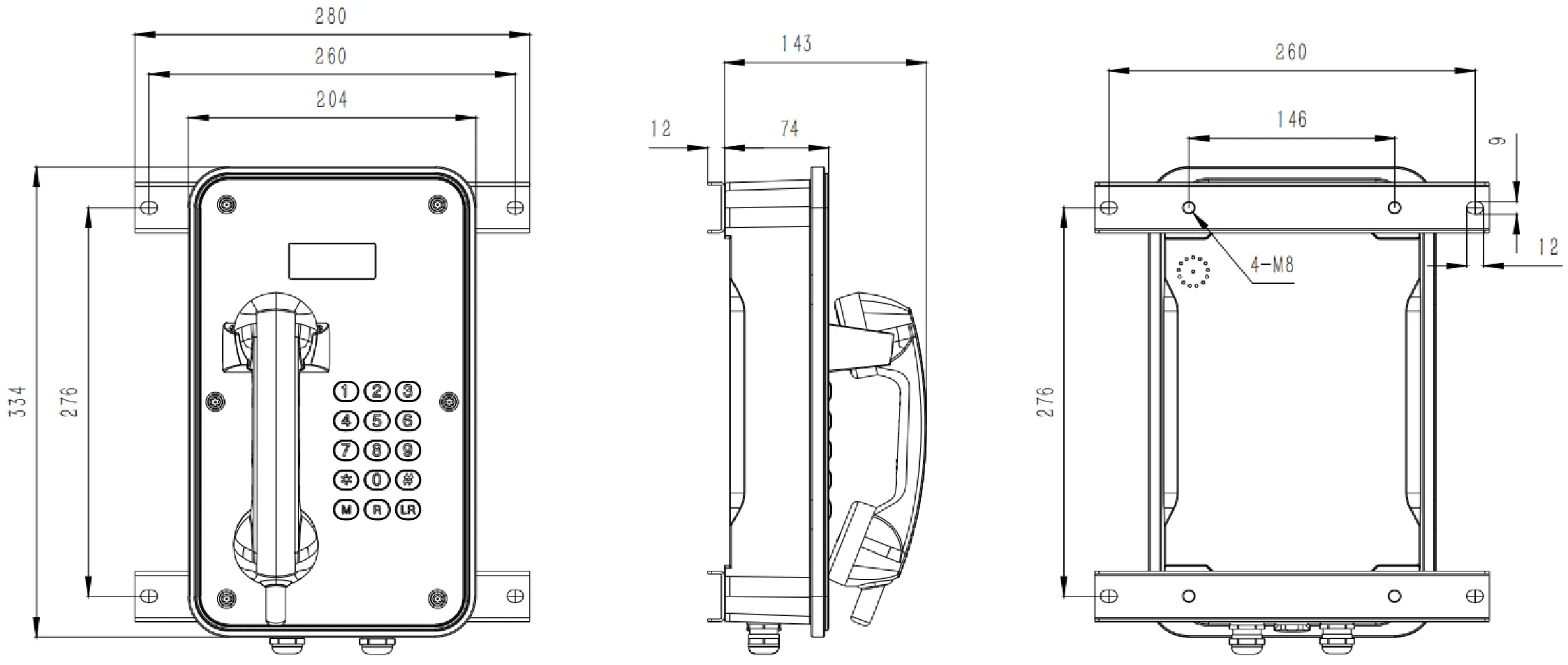

JR105-FK-4G Dimensions
Package
Unit size 204*334*143 (mm)
Shipping dimensions 200*300*440 (mm)
Packaging materials Foam padding, carton
Weight Gross weight: 6 kg / Net weight: 5 kg
