  • Vandal Resistant Telephones
  • JR200-4G
  1. Vandal Resistant Telephone JR211-1B-4G
Vandal Resistant Telephone JR211-1B-4G

Vandal Resistant Telephone JR211-1B-4G

  • Robust housing, constructed of brushed stainless steel
  • Protection level IP65
  • Advanced noise reduction technology for HD calls
  • Corrosion-resistant hardware
  • CE, FCC, RoHS, IK10, IP65, ISO9001 standards
获取报价 下载规格书
返回首页
主要特征
解决方案
技术参数
应用场景
联系我们

主要特征

Housed in a corrosion-resistant stainless steel/cold-rolled steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communication is maintained at all times.

Housing has a grounding device and is completely electrically isolated from the internal circuit, with a certain electromagnetic shield- ing effect, and the voice is clear and loud during the call, without whistling back. Armored "cord" provides additional resistance to vandalism or heavy industrial use.

The series telephones are designed to meet the needs of clients who experience losses due to vandalism. Ideal for parking lots, prisons, airports, railway, metro, ATMs machines, platforms, hospitals, police stations, shopping mall, stadiums, etc.


  • 4G wireless communication with remote configuration
  • Hotline telephone without keypad
  • One vandal resistant metal button, one-click call
  • ABS material handset with noise-cancelling microphone and 83 cm armored cord
  • The handset supports hearing aid compatibility (HAC)
  • Magnetic reed hook-switch
  • Desk mounting, simple installation

解决方案

Insert the SIM card into the 4G phone and connect to the operator's network to make calls

JR211-1B-4G APPLICATIONS

产品视频

技术参数

4G Specifications
Power supply 12V DC
Adapter input 7.4 V-12V DC
Power consumption Idle 0.3W / Working 1.5W
Communication mode 4G
Working frequency Depends on modules
Ringing tone 90 dB (A) @ 1 meter
Configuration method Remote configuration via SMS, allows management from a central location
Configuration Remote monitoring / Auto-dial numbers
Time out Enforces a fixed call maximum time limit of 6-8 minutes from off-hook, configurably
Diagnostic function Low battery voltage, weak signal, speaker volume, microphone volume can be reported via message
Antenna Quad-band SMA male, externally mounted with 2 m cable
Environment temperature Operating temperature -40˚C to 65˚C; Storage temperature -40°C to 75°C
M.T.B.F. Exceeds 50,000 hours under normal operating conditions
4G Module EC25
Module EC25-E EC25-EU / EUX EC25-J EC25-V
Region EMEA/Korea/Thailand/India EMEA/Thailand Japanese America Verizon
Frequency
LTE-FDD B1/B3/B5/B7/B8/B20 B1/B3/B7/B8/B20/B28A B1/B3/B8/B18/B19/B26 B4/B13
LTE-TDD B38/B40/B41 B38/B40/B41 B41 /
WCDMA B38/B40/B41 B1/B8 B1/B6/B8/B19 /
GSM/EDGE B3/B8 B3/B8 / /
GNSS GPS/GLONASS/BeiDou (Compass)/
Galileo/QZSS (option)
GPS/GLONASS/BeiDou (Compass)/
Galileo/QZSS (option)
GPS/GLONASS/BeiDou (Compass)/
Galileo/QZSS (option)
GPS/GLONASS/BeiDou (Compass)/
Galileo/QZSS (option)
Module EC25-A EC25-AF / AFX / AFXD (Data-only) EC25-AUX EC25-MX
Region North America North America Latin America/Australia/New Zealand Mexico
Frequency
LTE-FDD B2/B4/B12 B2/B4/B5/B12/B13/B14/B66/B71 B1/ B2/B3/B4/B5/B7/B8/B28 B2/B4/B5/B7/B28/B66
LTE-TDD / / B40 /
WCDMA B2/B4/B5 B2/B4/B5 B1/B2/B4/B5/B8 B2/B4/B5
GSM/EDGE / / B2/B3/B5/B8 /
GNSS GPS/GLONASS/BeiDou (Compass)/
Galileo/QZSS (option)
GPS/GLONASS/BeiDou (Compass)/
Galileo/QZSS (option)
GPS/GLONASS/BeiDou (Compass)/
Galileo/QZSS (option)
/

应用场景

Metro

Metro

Airport

Airport

Bus station

Bus station

Ship

Ship

Business center

Business center

Prison

Prison

Hospital

Hospital

School

School

可选配件

Acousto-optical Alarm JR-BS-01

JR-BS-01

Acoustic Hood JR-TH-01 Acoustic Hood JR-TH-01

Acoustic Hood JR-TH-01

尺寸包装

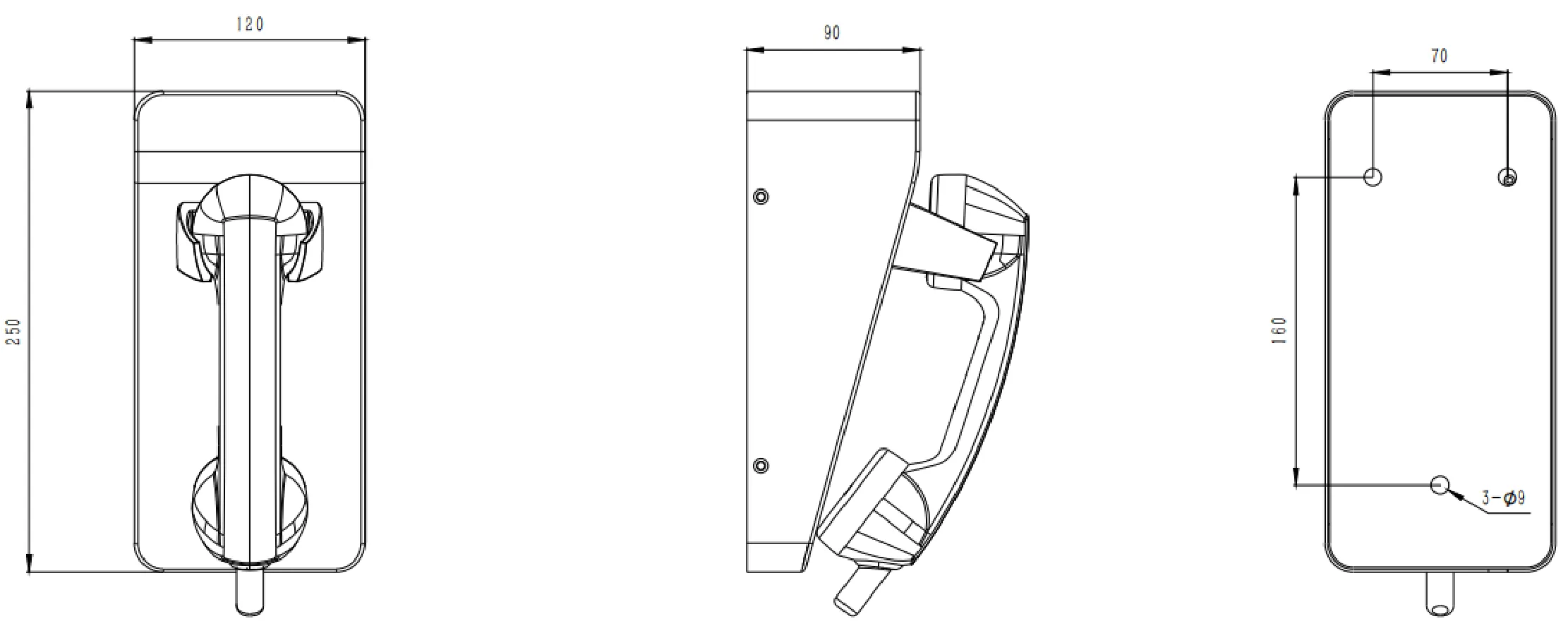

JR211-1B-4G Dimensions
Package
Unit size 250*120*160 (mm)
Shipping dimensions 340*235*165 (mm)
Packaging materials Foam padding, carton
Weight Net weight: 3 kg / Gross weight: 4 kg
