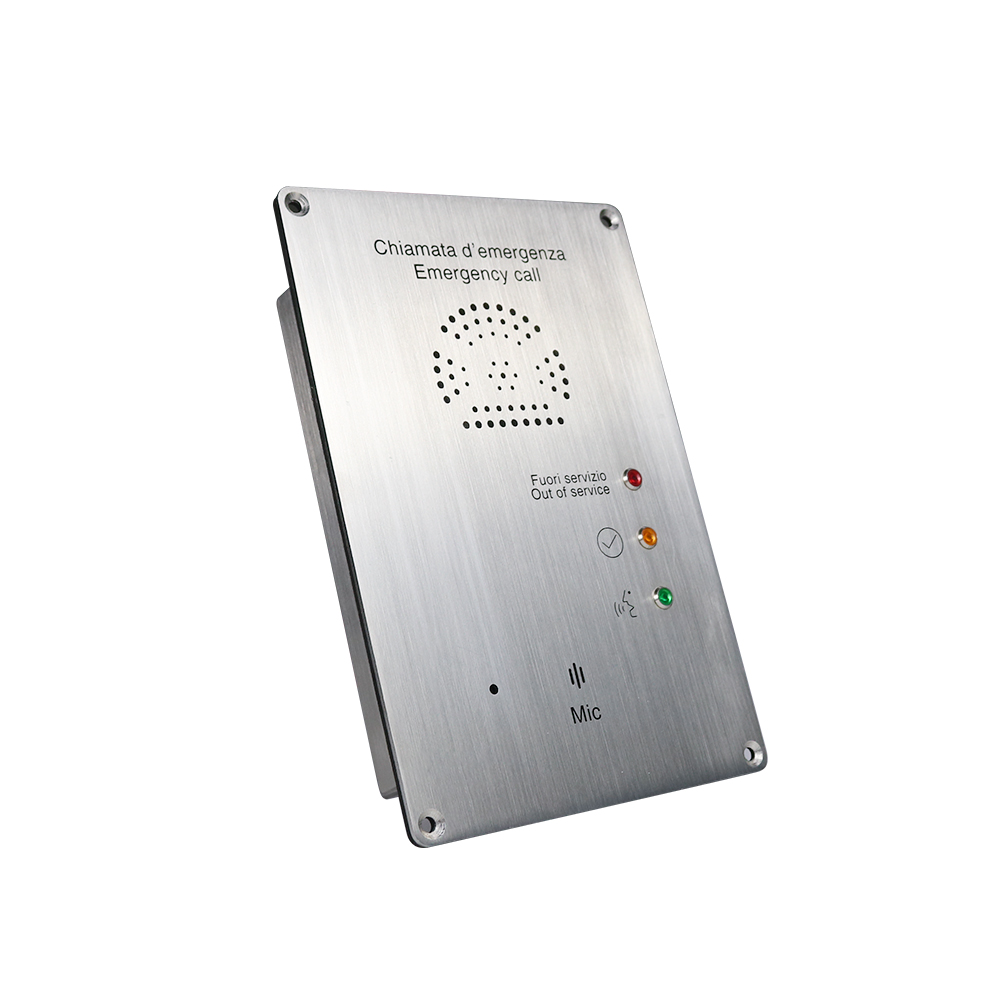

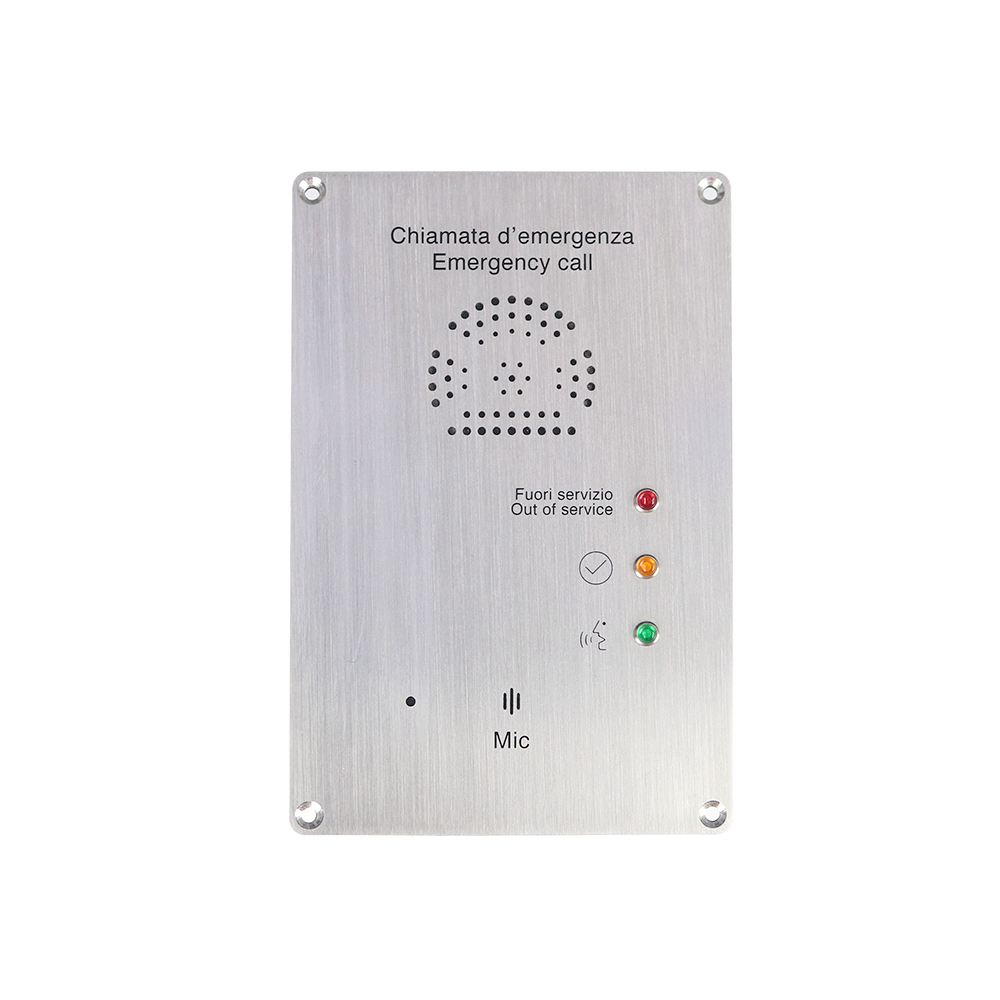

Railways Emergency Help Point （PAI）

to broadcast live announcements to passengers via loudspeakers distributed along the train.
to manage the onboard call between driver and passengers who request assistance (by Passenger Emergency Intercoms) or activate an emergency pad (by Passenger Alarm Intercoms).
to manage the on-board call between driver’s cabins.

获取报价

主要特征

The Railways on Board Passenger Announcement and Emergency Call System allows:

The train emergency call system is crucial for ensuring passenger safety, quickly responding to emergencies, and enhancing service quality. It allows passengers to immediately contact staff in emergencies, ensuring swift issue resolution. This system is an essential part of modern train operations.

解决方案

产品视频

技术参数

Activation	External activation
Status LEDs	Red, Yellow, and Green
Technology	Digital – VOIP/SIP
Communication	Full duplex 2-way hands-free communication
Audio codes	G.711, G.722, G.729
IP Protocols	IPv4, DHCP, SIP
Plate	Steel, customizable with different colours and screen printing
Power supply	Power over Ethernet IEEE 802.3 af (PoE)
Outline Dimensions	200,00 (H) x 132.5 (V) x 42 (D) [mm]
Weight	1,5 kg
Power Consumption Max	12 W
I/O	1 x Ethernet connector (M12 D-Coded, Female) 1 x Male Molex Minifit 2×2
Operating Temperature	-25°C/+55°C (EN50155 class OT1 ST1)
IP	IP32 (front)
Compliance	EN 50155 Railways Applications – Electronic Equipment used on Rolling Stock EN 45545 Railway applications – Fire protection on railway vehicles CE Certification RoHS Compliant REACH Compliant ISO 7000 – Graphical symbol for use on equipment
