Emergency phone tower provides a simple network connection without the need for a telephone adaptor, extending VoIP access into the most challenging environments. With only one voice and data infrastructure to install and maintain, time, money and call costs are significantly reduced. The towers withstand extreme temperatures, harsh weather conditions, vandalism, and vibration, while offering enhanced electromagnetic and lightning protection.

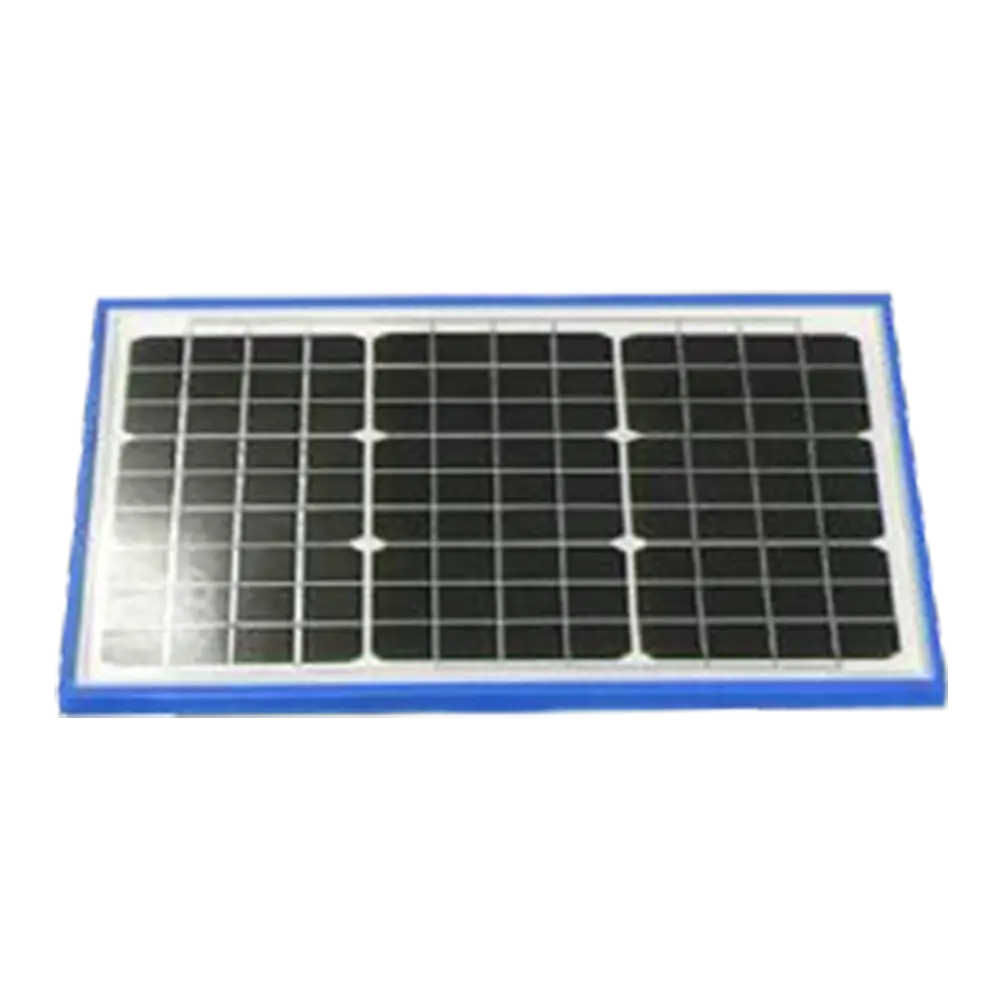

Emergency Phone Towers offer greater deployment flexibility with options for wireless connectivity, solar power, surveillance, and day/night charging.
These towers are commonly deployed at university and college campuses, parking facilities, shopping malls, medical centers, industrial campuses, transit facilities, and remote locations where local power is unavailable.
| SIP Specifications | |
| Power supply | Power over ethernet |
| Power | 9.0 watts, 12~24V DC |
| SIP protocol | SIP 2.0 (RFC3261) |
| Network port parameters | WAN Port: 10/100Base- T RJ-45 for LAN, Auto MDIX，LAN Port: 10/100Base- T RJ-45 for PC, Auto MDIX |
| Voice coders | G.711 A/U, G.722 8000/16000, G.723, G.729, G.726 |
| Communication mode | Full duplex |
| Ringing volume | 90~95 dB (A) @ 1 meter |
| Data protocols | IPv4, TCP, UDP, ICMP, ARP, RTP, SRTP, ONVIF, SNMPv1, RTCP-XR, 802.1x, Static IP/DHCP IP Assignment, IEEE 802.1p/Q, QoS/ToS, HTTP/HTTPS/DHCP, NTP, FTP/TFTP, CDP/LLDP VLAN Configuration, LDAP |
| Technical Specifications | |
| Built-in auto-dial, 2-way hands-free communication with built-in speaker and microphone, standard RJ45 connector. | |
| Auto-answer allows security to monitor and initiate calls with Emergency Phone. | |
| Vandal resistant brushed stainless steel face-plate and metal button, Circuit boards are conformal coated for water protection. | |
| Offers direct connection to LAN or WAN via RJ45 connector, including Power-Over-Ethernet (POE) standard. | |
| Easy Configuration | |
| Intuitive web pages held within the telephone can be accessed over the network using a browser such as Internet Explorer™ to view monitor and change settings within the telephone. |
|
| 24/7 Availability | |
| Telephones with memory buttons have an automatic call divert facility as standard, so that if a number (or URL) is not available then to up to 20 alternatives can be dialled automatically. |
|
| Remote Control | |
| Two outputs provide the ability to control external beacons, sounders, CCTV triggering andgate control. | |
| Four inputs allow for the monitoring of sensors which can initiate email or Syslog messaging. | |
| Global Application | |
| Equipped with national telephone call tones enabling seamless operation across the globe, and giving the user recognisable comfort tones. | |
| Weather and Vandal Resistance is Standard | |
| The telephones are housed within our standard enclosures offering proven high levels of unit integrity and delivering a robust solution. | |
| Multicast (Only applicable to hands-free products) | |
| Allows a single audio stream to be received by multiple endpoints simultaneously, to achieve multi-point paging or Public Address functionality over IP (Requires amulticast compliant SIP server). |
|
| 8 definable multicast address ranges, with individual priority levels, for zoning. Assignable rely outputs and splash tones. | |
| Audio Path Testing | |
| Allows remote testing of handsets, microphones and speakers, to verify that a phone is functioning acoustically. | |
| Can be run on demand or on a scheduled basis, reporting its results via Syslog and / or email. | |
| DTMF (dual tone multi-frequency) | |
| The phone s 2 relays can be activated remotely using DTMF codes. | |
| Lighting | |
| LED Blue Light, 209 lumens peak, 78 flashes per minute, 70% of initial lumens after 50,000 hours of operation. | |
| Coating | |
| High-gloss, multi-layer, corrosion-inhibitive, system with resistance to graffiti protection. | |
| Mounting | |
| Mounts into concrete foundation using included hardware (shipped in advance). Mounting options available for pre-poured parking decks. | |
Metro
Airport
Platform
Business center
Industrial
Hospital
Bank
School
| Package | |

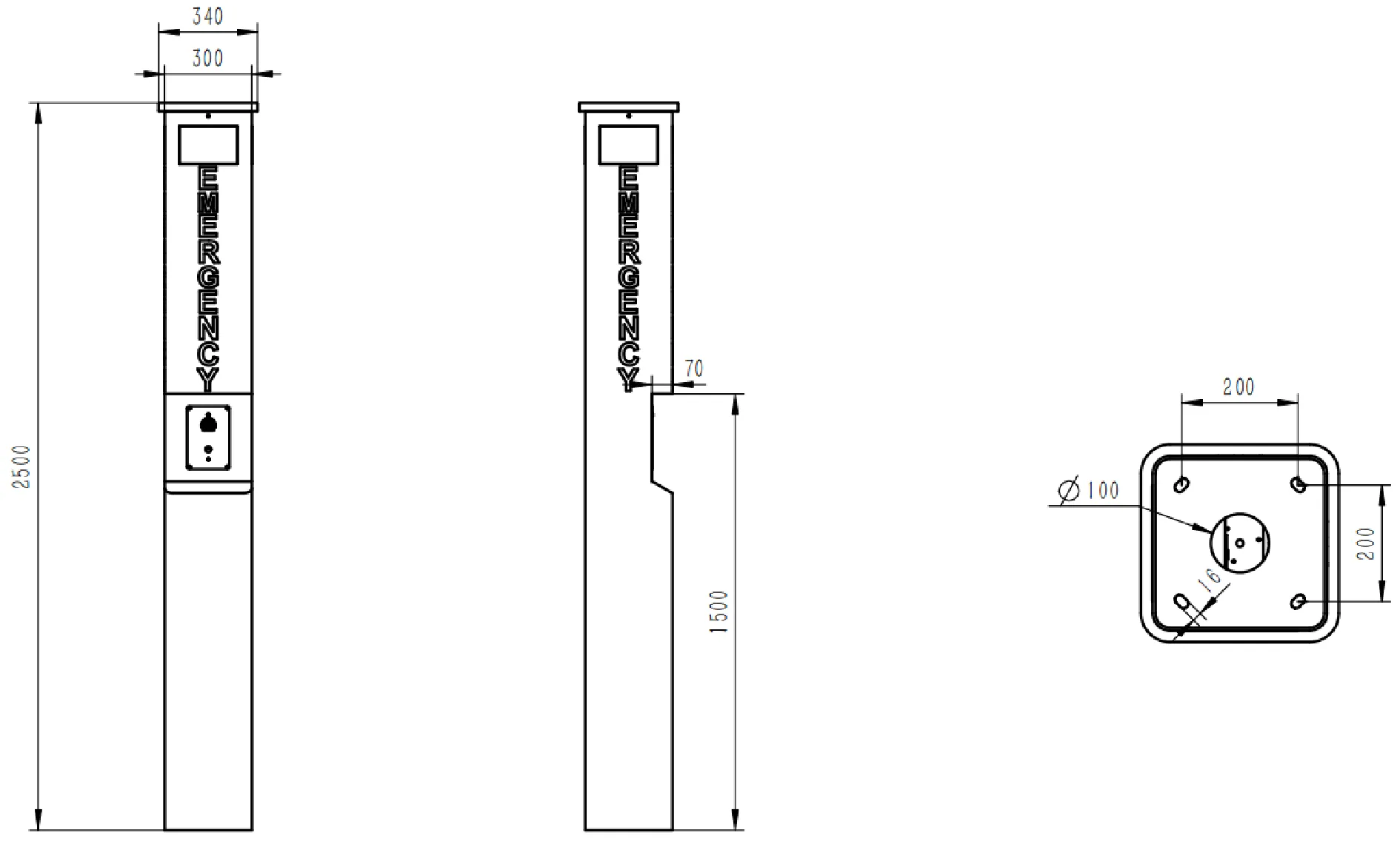

| Unit size | 2500*340*300 (mm) |
| Shipping dimensions | 2570*420*500 (mm) |
| Packaging materials | Foam padding, wooden case |
| Weight | Gross weight: 104 kg / Net weight: 67 kg |
